Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement

Certification : CE

Angle Measurement Accuracy : ±0.05° (Full Range)

Supply Ability : 1000/month

Weight : ≤140g

Payment Terms : L/C,T/T,Western Union

Display Size : L40 × W32 mm

Delivery Time : 1 week

Dimensions : 83 × 19 × 53 mm

Model Number : FMI410

Angle Measurement Range : ±180°

Price : 300$

Packaging Details : Sponge + Carton

mm/m Measurement Resolution : 0.1mm/m

Place of Origin : China

Angle Resolution : 0.01°

MOQ : 1

Tilt Measurement Range : ±999.9 mm/m

Contact Now

Digital Inclinometer ±180° Electronic Level Meter with 0.01° Resolution for Industrial Angle Measurement

Product Overview

The FMI410/420 is an electronic level instrument designed for precise angle control and measurement across various industrial applications. Utilizing micro mechanical control principles and dual core measurement units, this instrument features advanced compensation algorithms that ensure long-term stability and repeatability in measurements.

The FMI410 offers single-axis ±180° measurement, while the FMI420 provides dual-axis ±90° measurement. Both models deliver 0.01° resolution, accuracy better than 0.05° across the full range, fast response speed, and stable data output. The design includes strong magnetic adsorption installation on both sides and bottom, allowing for normal measurement from either side.

Key Features

  • Auto-angle interleaved compensation function
  • Auto temperature drift compensation
  • User-calibratable design
  • Built-in rechargeable industrial batteries
  • Night vision four-color screen
  • IP54 protection class
  • Angle/length dual unit switch
  • 100g high impact resistance

Technical Specifications

Parameters FMI410 FMI420
Measurement Axis Single Axis Dual Axis
Angle Measurement Range ±180° ±90°
Angle Measurement Accuracy 0.05° (full range) 0.05° (full range)
Angle Measurement Resolution 0.01° 0.01°
mm/m Measurement Range ±999.9mm/m ±999.9mm/m
mm/m Measurement Accuracy 0.9mm/m (full range) 0.9mm/m (full range)
mm/m Measurement Resolution 0.1mm/m 0.1mm/m
LCD Visible Area Size L40*W32mm
Working Temperature -10℃ to +70℃
Working Humidity 85%RH
Power Supply 3.7V Charging Lithium Battery
Ideal Charging Time 3h
Battery Continuous Working Time 8h (±0.5)
Data Output Signal Type-C
Anti-vibration 10g@11ms, 3 Axial Direction (Half Sinusoid)
Impact Resistance 10grms, 10～100Hz
Waterproof Level IP54
Material Metal Aluminum
Size L83*W19*H53mm
Weight ≤140g

Order Information

Item No. Order Description
FMI410 Standard single axis digital display inclinometer / measure range ±180° (length 0～±999.9mm/m)
FMI420 Standard dual axis digital display inclinometer / measure range ±90° (length 0～±999.9mm/m)

Product Dimensions

Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement

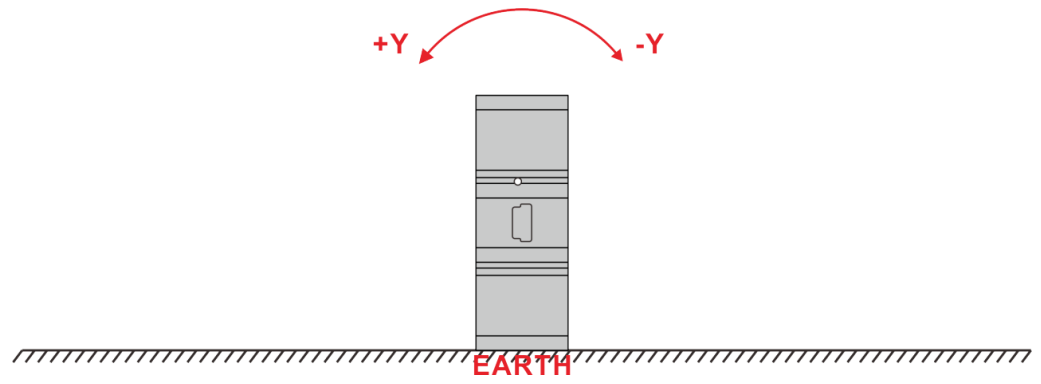

Measuring Direction

Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement Digital Inclinometer with ±180° Measurement Range and 0.01° Resolution for Industrial Angle Measurement
